The Echo transmitters offer multiple frequencies as well as two power levels that can be changed via the receiver or down hole. With a depth range of up to 110 meter, the Echo series transmitters are the most powerful, versatile, and easy to use transmitters on the market.

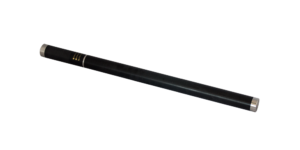

Echo 110
The Echo 110 is an extended range transmitter that offers up to ten frequencies as well as two power modes. Switch not only frequency but also power mode down hole. With a depth range of up to 110 meter in High Power Mode, the Echo 110 offers exceptional versatility in all drilling environments. No job is too big nor is any interference too loud for the Echo 110.
| Dimensions | 3.6 cm x 60.5 cm |
| Frequency | 10 Frequencies 4kHz-31kHz |
| Battery Type | 18650 B2 x 3 Rechargeable Lithium |
| Battery Life | 120 hrs – Normal Mode 30 hrs – High Power Mode |
| Signal Range | 90 meter – Normal Mode 110 meter – High Power Mode |
Echo 90
The Echo 90 is an extended range transmitter that offers up to ten frequencies as well as two power modes. Switch not only frequency but also power mode down hole. With a depth range of up to 90 meter in High Power Mode, the Echo 90 offers exceptional versatility in all drilling environments. No job is too big nor is any interference too loud for the Echo 90.
| Dimensions | 3.6 cm x 45.5 cm |
| Frequency | 10 Frequencies 4kHz-31kHz |
| Battery Type | 18650 B2 x 2 Rechargeable Lithium |
| Battery Life | 80 hrs – Normal Mode 20 hrs – High Power Mode |
| Signal Range | 70 meter – Normal Mode 90 meter – High Power Mode |
Echo 70
The Echo 70 is an extended range transmitter that offers up to ten frequencies as well as two power modes. Switch not only frequency but also power mode down hole. With a depth range of up to 70 meter in High Power Mode, the Echo 70 offers exceptional versatility in all drilling environments. No job is too big nor is any interference too loud for the Echo 70.
| Dimensions | 3.6 cm x 40.5 cm |
| Frequency | 10 Frequencies 4kHz-31kHz |
| Battery Type |
18650 x 3 Rechargeable Lithium |
| Battery Life |
60 hrs – Normal Mode 15 hrs – High Power Mode |
| Signal Range |
50 meter – Normal Mode 70 meter – High Power Mode |
Echo 60
The Echo 60 is an extended range transmitter that offers up to ten frequencies as well as two power modes. Switch not only frequency but also power mode down hole. With a depth range of up to 60 meter in Power + Mode, the Echo 60 also offers long battery life of up to 160 hours in low power mode.
| Dimensions | 3.2 cm x 48 cm |
| Frequency | 4kHz - 31Khz |
| Battery Type |
2 Echo Cell Kits or 2 Lithium Battery Packs |
| Power + Mode | Power + Mode slows data update rate by half and extends date range |
| Battery Life |
50 hrs or 160 hrs (normal power) 12 hrs or 40 hrs (Power + Mode) |
| Signal Range |
40 meter (normal power) 60 meter (Power + Mode) |
| Roll | 24 Transmitter Roll Positions |
| Pitch | 0.1% resolution |
| Temp. Allowed |
Under 190°F |
| Down Hole Echo Mode Change |
Able |

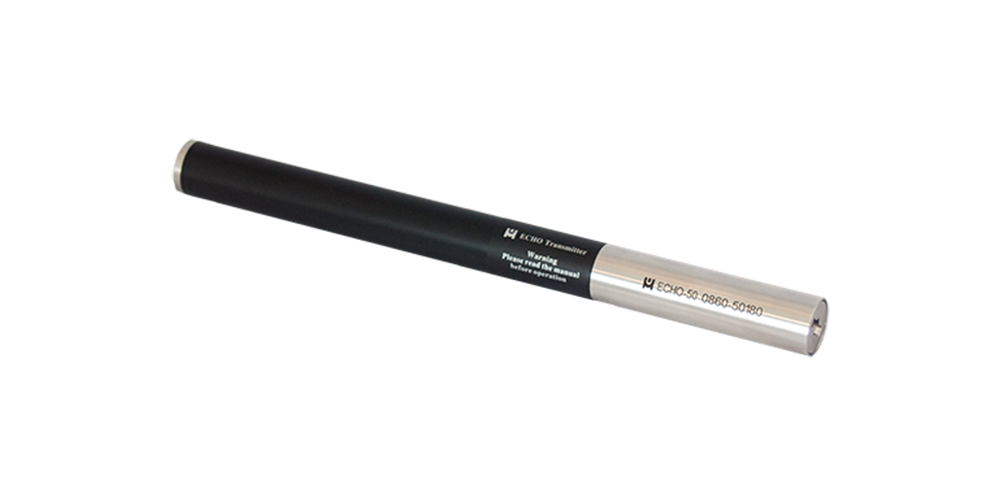

Echo 50
The Echo 50 is an extended range transmitter that offers up to ten frequencies as well as two power modes. Switch not only frequency but also power mode down hole. With a depth range of up to 50 meter in High Power Mode, the Echo 50 offers exceptional versatility in all drilling environments. No job is too big nor is any interference too loud for the Echo 50.
| Dimensions | 3.2 cm x 38 cm |
| Frequency | 10 Frequencies 4kHz - 31kHz |
| Battery Type |
2 C-cell batteries, Echo Power Cells |
| Battery Life |
12 hours, 20 hours, or 48 hours (normal power) NA, 5 hours, or 12 hours (high power) |
| Signal Range |
40 meter (normal power) 50 meter (high power) |
| Roll | 24 Transmitter Roll Positions |
| Pitch | 0.1% resolution |
| Temp. Allowed |
Under 190°F |
| Down Hole Echo Mode Change |
Able |

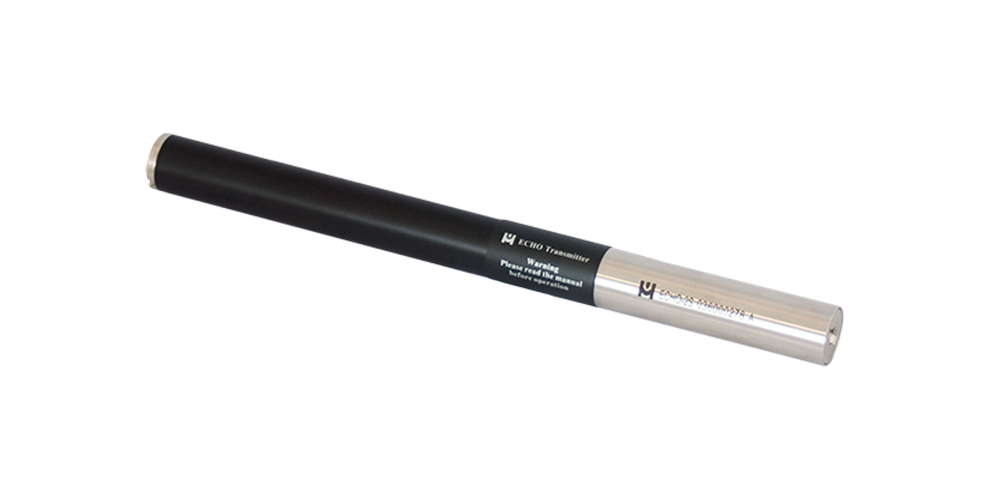

Echo 2S
The Echo 2S transmitter offers three frequencies as well as two power levels. With a depth range of up to 50 meter in high power mode, the Echo 2S is the most powerful standard length transmitter available today. Add in the ability to change not only frequency, but also the power mode, down hole and you have a transmitter that can tackle any job.
| Dimensions | 3.2 cm x 38 cm |
| Frequency | 4kHz/19kHz/30kHz |
| Battery Type |
2 C-cell batteries, Echo Cell Kit or Echo Power Cells |
| Battery Life |
12 hours, 20 hours, or 48 hours (normal power) NA, 5 hours, or 12 hours (high power) |
| Signal Range |
40 meter (normal power) 50 meter (high power) |
| Roll | 24 Transmitter Roll Positions |
| Pitch | 0.1% resolution |
| Temp. Allowed |
Under 190°F |
| Down Hole Echo Mode Change |
Able |
Echo 3
The Echo 3 is an extended range transmitter that offers up to three frequencies as well as two power modes. Switch not only frequency but also power mode down hole. With a depth range of up to 60 meter in Power + Mode, the Echo 3 offers exceptional versatility in all drilling environments. No job is too big nor is any noise too loud for the Echo 3.
| Dimensions | 3.2 cm x 48.2 cm |
| Frequency | 4kHz/19kHz/30kHz |
| Battery Type |
2 Echo Cell Kits or 2 Echo Power Cells |
| Power + Mode |
Power + Mode slows data update rate by half and extends date range |
| Battery Life |
50 hours or 160 hours (normal power) 12 hours or 40 hours (Power + Mode) |
| Signal Range |
30 meter (normal power) 60 meter (Power + Mode) |
| Roll | 24 Transmitter Roll Positions |
| Pitch | 0.1% resolution |
| Temp. Allowed |
Under 190°F |
| Down Hole Echo Mode Change |
Able |
Echo Xmini
The Xmini is a small transmitter designed for smaller drills and transmitter housings. Transmitter size is 20 cm long x 2.5 cm in diameter. It is dual frequency 19kHz and 30kHz powered by one 18650 rechargeable lithium battery. The depth capability is 20 meter with a battery life of 20 hours.
| Dimensions | 2.5 cm x 20 cm |
| Frequency | Dual Frequency 19kHz/30kHz |
| Battery Type |
One 18650 rechargeable lithium battery |
| Battery Life |
20 hours |
| Signal Range |
18 meter |
| Roll | 24 transmitter roll positions |
| Pitch | 0.1% resolution |
| Temp. Allowed |
Under 190 F |

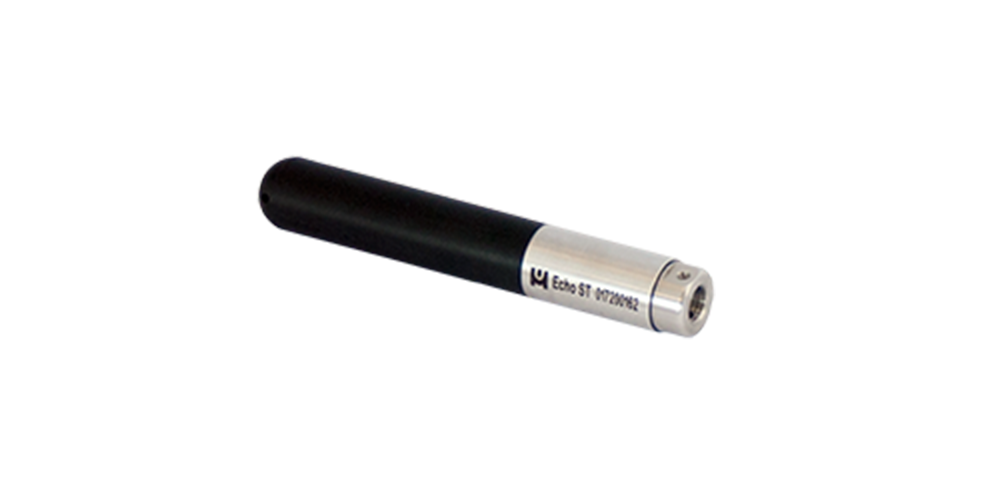

Echo ST
The Echo ST is a single frequency transmitter for locating existing conduit in the ground. With a depth range of up to 20 meter and displaying both pitch and roll information, the Echo ST provides an excellent tracking tool.
| Dimensions | 2 cm x 16 cm |
| Frequency | 30kHz |
| Battery Type |
3V Lithium Battery |
| Roll | 24 transmitter Roll Positions |
| Pitch | 0.1% resolution |
| Temp. Allowed | Under 190°F |

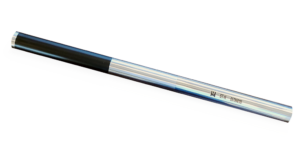

Echo ST-H
The Echo ST-H is a special transmitter designed for Hunting Intl. to be used in a 0.1 meter mud motor. Sold through Hunting Intl. only, this transmitter has two frequencies with high and low power. It is powered by two rechargeable lithium batteries with a battery life of 100 hours in standard power mode. The depth capability is 9.1 meter in high power mode.
| Dimensions | 2 cm × 40 cm |
| Frequency | High / Low |
| Battery Type | 2 Rechargeable Lithium Batteries |
| Battery Life | 100 hours |
| Signal Range | 27 Meter in High Power Mode |
| Roll | 24 transmitter roll positions |
| Pitch | 0.1% resolution |
| Temp. Allowed | Under 190 F |
| Down Hole Echo Mode Change | Able |
